Alkaline water electrolysis for green hydrogen production. System mainly includes power supply unit,
PLC unit,electrolyzer stack, alkali circulating unit, gas-liquid separation unit and hydrogen purification unit.
Brand :
RubriElectrolytic Cell :
Alkaline TypeH2 Capacity :
1-2000Nm³/h（optional）H2 purity :
99.99%-99.9999% （optional）Container design :
OptionalCustomization :
SupportProduct Description

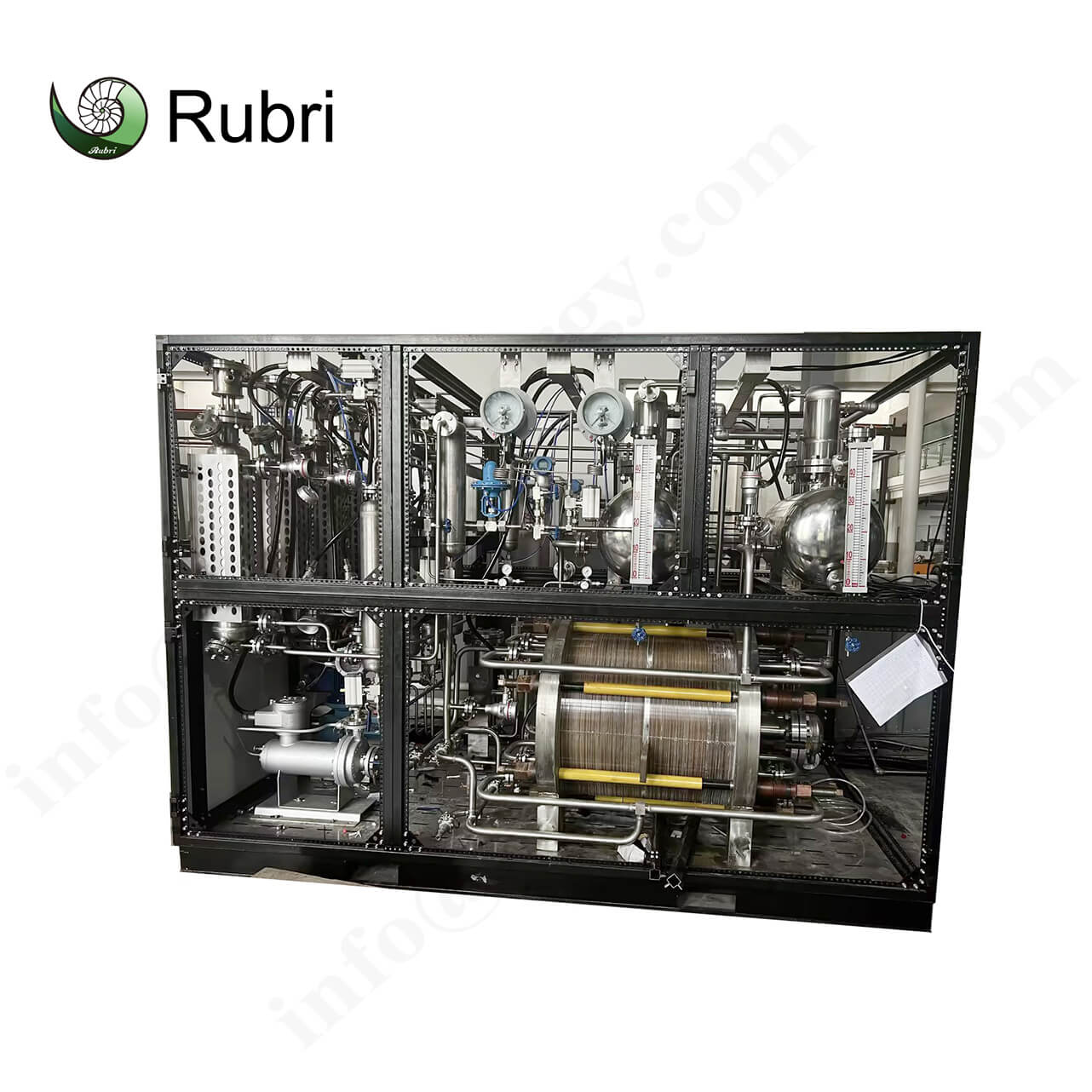

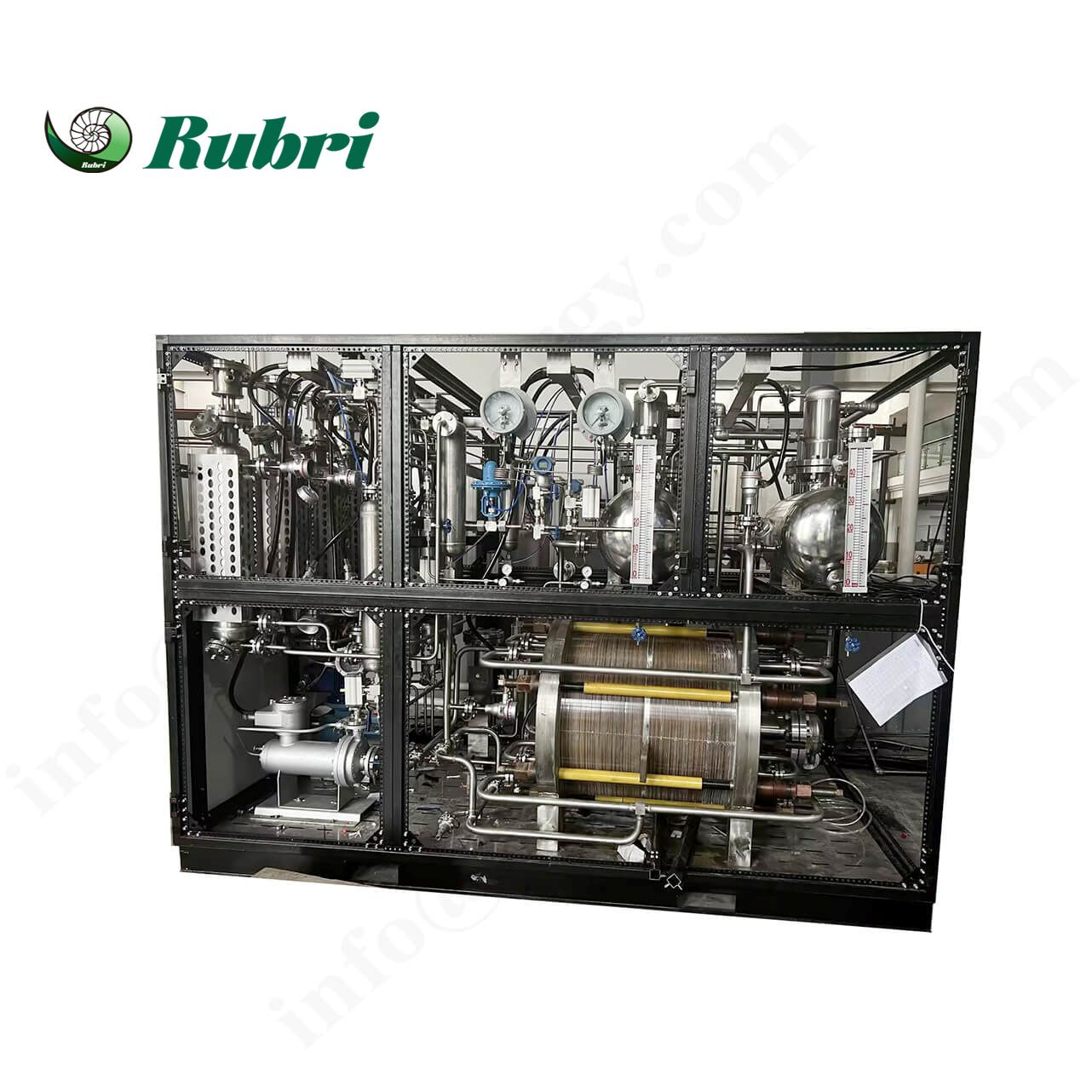

ALK Hydrogen Electrolyzer Stack Water Electrolysis
Alkaline Water Electrolysis (AWE) green hydrogen production equipment, provides solutions to the globally increasing need for green energy. System mainly includes power supply unit, PLC unit, electrolyzer stack, alkali circulating unit, gas-liquid separation unit and hydrogen purification unit.
Advantages of Alkaline Water Electrolysis:
1.Long service life: designed for 20-30 years
2. Economic, especially for mass production of hydrogen
3. High stability with mature technology
Specifications
| Model | H2 capacity （Nm³/h） |
H2 pressure | H2 purity | DC power consumption |
Pure water consumption |
| Rubri-A1-0001 | 1 | ≤1.6Mpa （adjustable） |
≥99.999% (higher purity customizable) |
≤4.8kwh/Nm³ H2 | 1L/h |
| Rubri-A1-0002 | 2 | 2L/h | |||
| Rubri-A1-0003 | 3 | 3L/h | |||
| Rubri-A1-0005 | 5 | 4L/h | |||
| Rubri-A1-0006 | 6 | 5L/h | |||
| Rubri-A1-0010 | 10 | 10L/h | |||
| Rubri-A1-0015 | 15 | 15L/h | |||
| Rubri-A1-0020 | 20 | 20L/h | |||
| Rubri-A1-0030 | 30 | 30L/h | |||
| Rubri-A1-0040 | 40 | 40L/h | |||
| Rubri-A1-0050 | 50 | 50L/h | |||
| Rubri-A1-0100 | 100 | ≤4.6kwh/Nm³ H2 | 100L/h | ||
| Rubri-A1-0150 | 150 | 150L/h | |||
| Rubri-A1-0200 | 200 | 200L/h | |||
| Rubri-A1-0250 | 250 | 250L/h | |||
| Rubri-A1-0300 | 300 | 300L/h | |||
| Rubri-A1-0400 | 400 | ≤4.4kwh/Nm³ H2 | 400L/h | ||
| Rubri-A1-0500 | 500 | 500L/h | |||
| Rubri-A1-0800 | 800 | 800L/h | |||
| Rubri-A1-1000 | 1000 | 1000L/h | |||
| Rubri-A1-2000 | 2000 | 2000L/h |
Usage Scenarios
Scenarios for Alkaline electrolyzer system:
To power hydrogen vehicles
As synthetic fuels
For upgrading oil/biomass
To produce green NH3
For metal refining
For power and heat generation
Why Choose US
1. Wide range of production capacity: 1-2000Nm³/h
2. H2 purity as high as 99.9999% available
Project Cases
How to Get a Quote
If you are interested in getting a quote of our Alkaline hydrogen generation equipment, please feed us the following:
1. What will the hydrogen be used for?
2. What hydrogen production capacity do you want?
or How many kw power do you have for the electrolyzer plant?
3. What hydrogen purity and outlet pressure do you want?
4. Do you have any plans for hydrogen storage?
5. Do you want the equipment to be included in container?
6. Do you want auxiliary equipment such as water purifier, air compressor and chiller unit to be included?
