PEM water electrolysis for green hydrogen production, works well with renewable energy power. System mainly includes power supply unit,PLC unit,electrolyzer stack, gas-liquid separation unit and hydrogen purification unit.
Brand :
RubriElectrolytic Cell :
PEM TypeH2 Capacity :
1-300Nm³/h（optional）H2 purity :
99.99%-99.9999% （optional）Container design :
OptionalCustomization :
SupportProduct Description

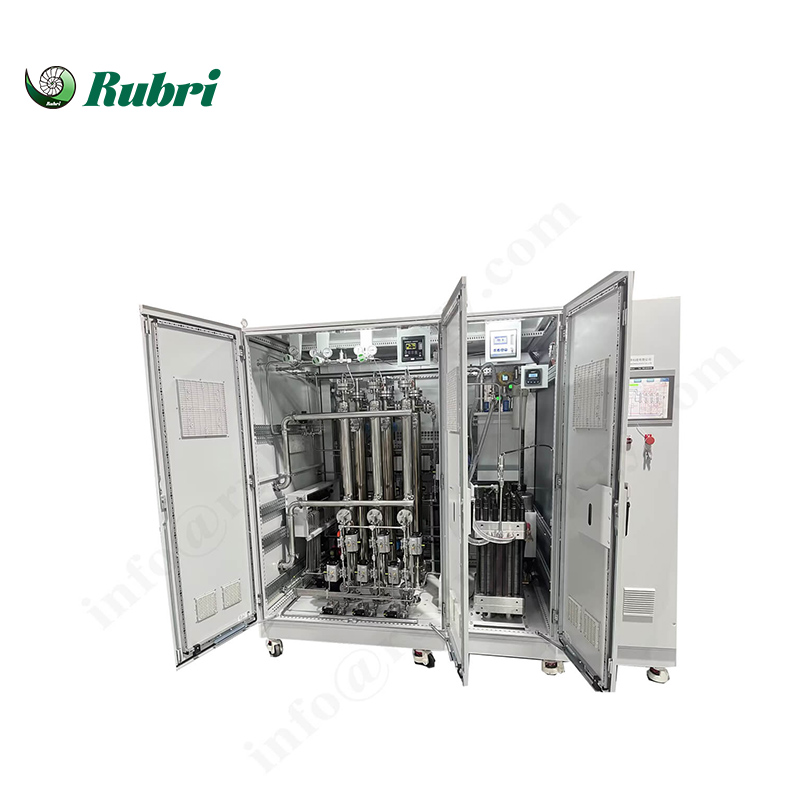

PEM Hydrogen Water Electrolysis Equipment
Proton Exchange Membrane Water Electrolysis, namely PEM electrolyzer green hydrogen production equipment, which works well with renewable energy power, provides desirable solutions to globally increasing need for green energy.
System mainly includes power supply unit, PLC unit, electrolyzer stack, gas-liquid separation unit and hydrogen purification unit.
Specifications
| Model | H2 capacity （Nm³/h） |
H2 pressure | H2 purity | DC power consumption | Water consumption |
| Rubri-P1-0001 | 1 | ≤3Mpa （adjustable） |
≥99.999% (higher purity customizable) |
≤4.6kwh/Nm³ H2 | 1L/h |
| Rubri-P1-0002 | 2 | 2L/h | |||
| Rubri-P1-0003 | 3 | 3L/h | |||
| Rubri-P1-0004 | 4 | 4L/h | |||
| Rubri-P1-0005 | 5 | 5L/h | |||
| Rubri-P1-0010 | 10 | 10L/h | |||
| Rubri-P1-0015 | 15 | 15L/h | |||
| Rubri-P1-0020 | 20 | 20L/h | |||
| Rubri-P1-0030 | 30 | 30L/h | |||
| Rubri-P1-0050 | 50 | 50L/h | |||
| Rubri-P1-0100 | 100 | ≤4.4kwh/Nm³H2 | 100L/h | ||
| Rubri-P1-0150 | 150 | 150L/h | |||
| Rubri-P1-0200 | 200 | 200L/h | |||
| Rubri-P1-0250 | 250 | 250L/h | |||
| Rubri-P1-0300 | 300 | 300L/h |
Usage Scenarios
Scenarios for PEM electrolyzer system:
To power hydrogen vehicles
As synthetic fuels
For upgrading oil/biomass
To produce green NH3
For metal refining
For power and heat generation
Why Choose US
1. Wide range of production capacity: 1-2000Nm³/h
2. H2 purity as high as 99.9999% available
Project Cases
How to Get a Quote
If you are interested in getting a quote of our PEM Electrolyzer equipment, please feed us the following:
1. What will the hydrogen be used for?
2. What hydrogen production capacity do you want?
or How many kw power do you have for the electrolyzer plant?
3. What hydrogen purity and outlet pressure do you want?
4. Do you have any plans for hydrogen storage?
5. Do you want the equipment to be included in container?
6. Do you want auxiliary equipment such as water purifier, air compressor and chiller unit to be included?
