Electronically controlled voltage regulating module

Electronically controlled pressure regulator

Electronically controlled voltage regulating module

The pressure regulating valve can be integrated with a low-pressure shut-off valve, a pressure relief valve, a pressure sensor, a filter, and other customized requirements.

  • Brand :

    Rubri
  • Flow rate :

    >15kg/hr hydrogen (@20℃)
  • Inlet pressure :

    5bar-30bar
  • Outlet pressure :

    0.2-3bar
New Products
  • Product Details

Product Description

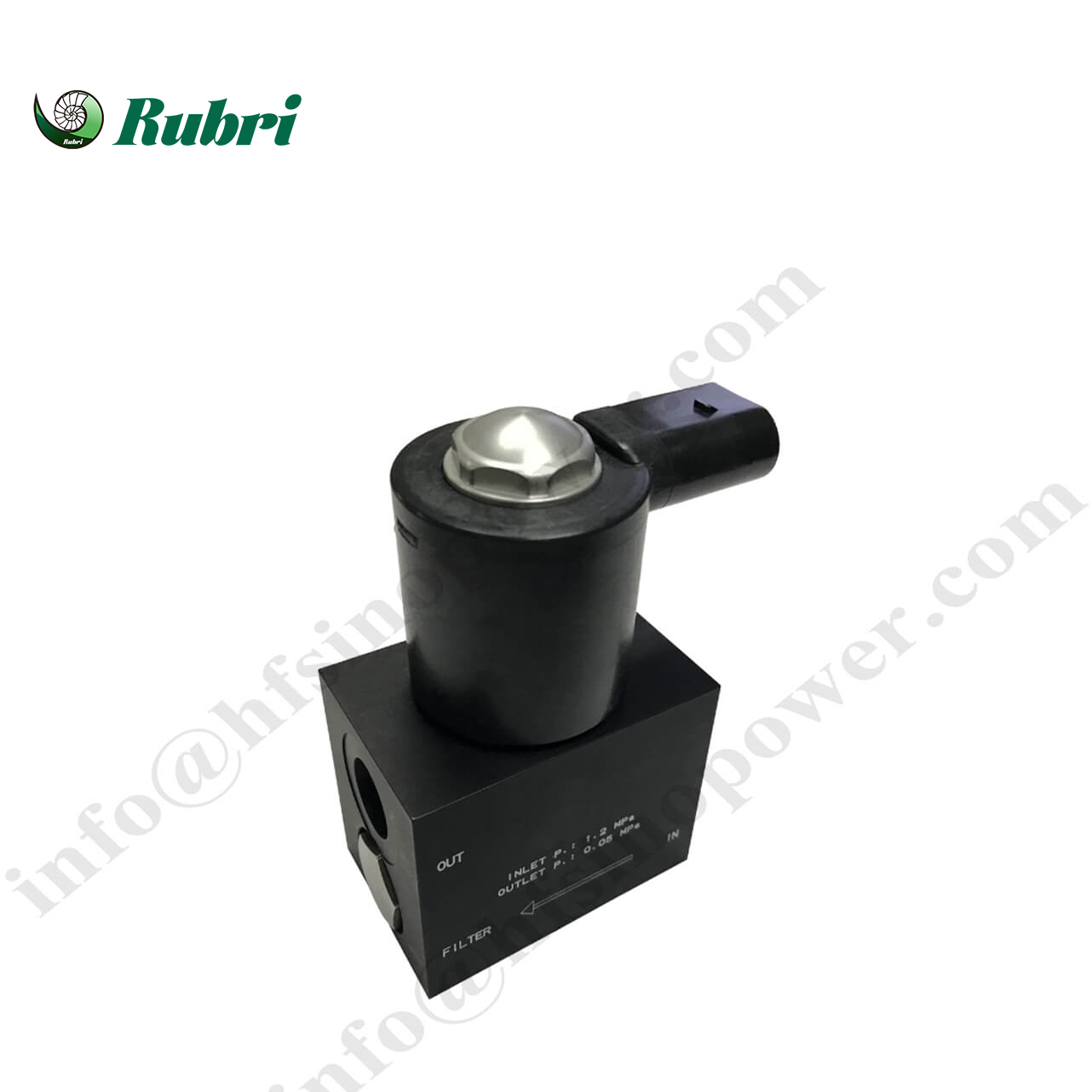

H-PCV electronically controlled voltage regulating module

Electronically controlled voltage regulator

The maximum inlet pressure of the H-PCV series electronically controlled pressure regulating valve is 3Mpa.

The electronically controlled pressure regulating valve can provide a stable outlet pressure under different inlet pressure and flow requirements.

The pressure regulating valve can be integrated with a low-pressure shut-off valve, a pressure relief valve, a pressure sensor, a filter, and other customized requirements.

Products Parameter
GENERAL  INFORMATION
Application Hydrogen low pressure regulator
Design Electronically controlled proportional valve
Body material Aluminum,anodized
Fuel type Hydrogen
PERFORMANCE
Nominal inlet pressure Configurable from 0.5to 3 MPa lg)
Regulated flow rate Configuroble:>15kg/hr hydrogen |@20℃)
Outlet pressure Configuroble from 0.2 to 3barg nominal,electronically controlled
Working temperature -40℃ to 120℃ (-40°F to 248°F)
Optional pressure relief vlave Mulfiple settings available;to be determined with customer
Optional filter(replaceable) 40 μm.99%efficiency 40 pm, filtration efficiency99%
Optional pressure sensor Customer defined
Coll 12V,PWM controlled,5.7ohm @20°CJ
CONNECTIONS
Inlet thread type 9/16”-18 UNF:other configurations possible
Outlet thread type 9/16”-18 UNF:other configurations possible
