The fuel cell electronically controlled voltage regulator is a key component installed in the gas pipeline of a gas fuel engine.
It receives control instructions from the ECM through the internal control chip, and then controls the gas volume through the high-pressure solenoid valve, and effectively adjusts the air-fuel ratio of the gas engine in real time.
Brand :
RubriFlow rate :
>15kg/hr hydrogen (@20℃)Inlet pressure :
5bar-30barOutlet pressure :
0.2-3barProduct Description

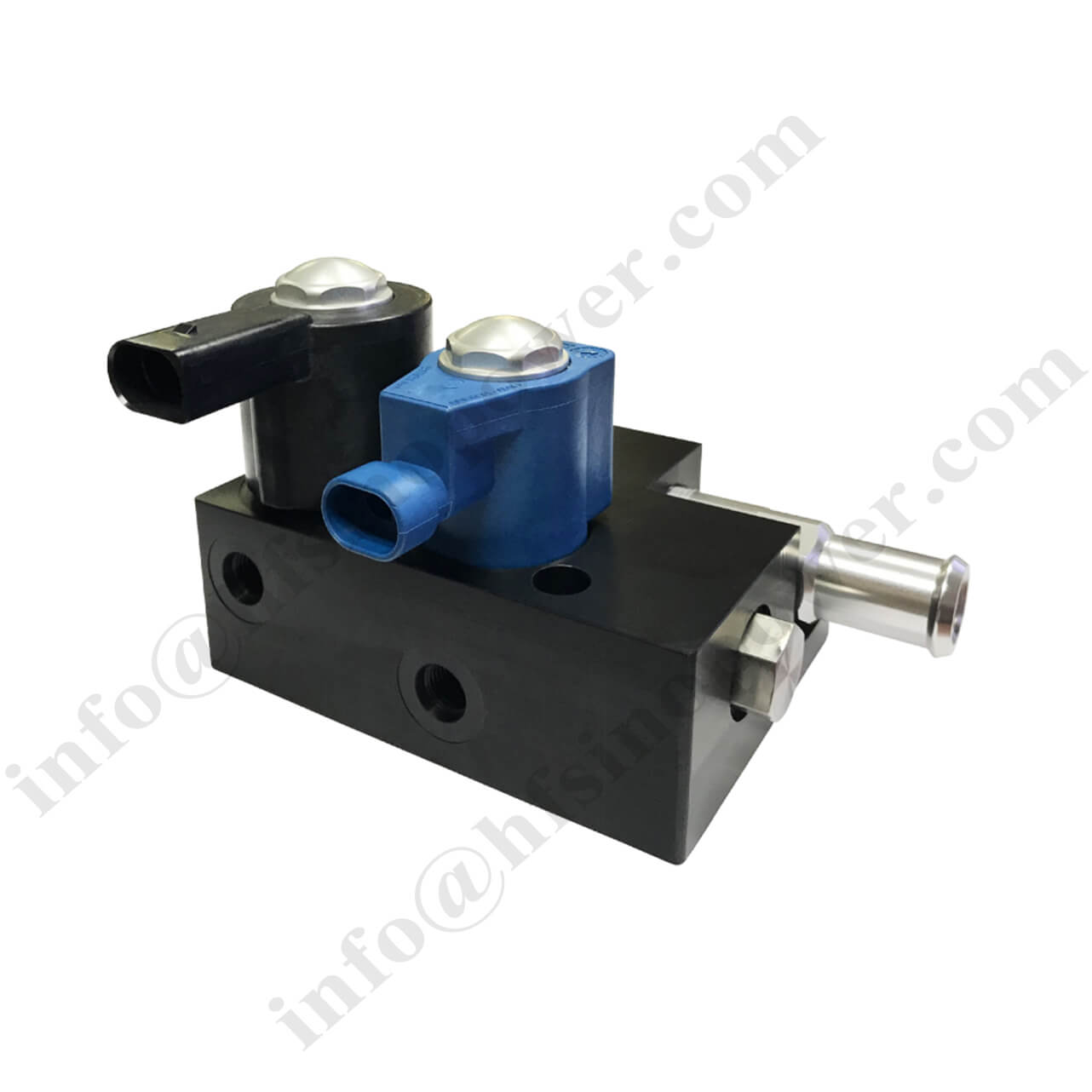

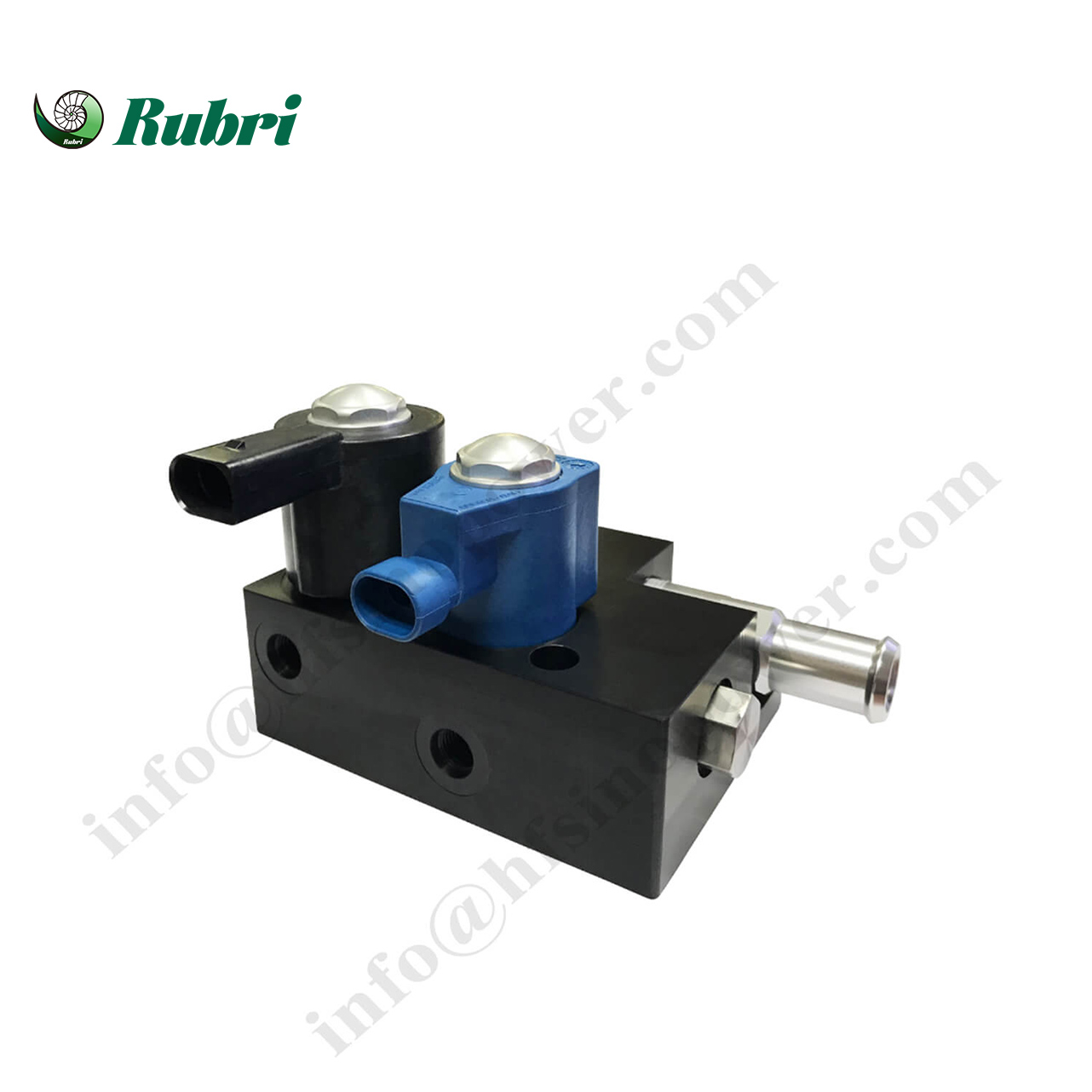

H-PCM electronically controlled voltage regulating module
The maximum inlet pressure of the H-PCM series electronically controlled pressure regulator is 3Mpa.
The pressure regulator integrates GFI pressure control valve, low-pressure shut-off valve, pressure relief valve, filter and other customized requirements such as pressure sensor interface.
Electronically controlled pressure regulation can provide a stable outlet pressure under different inlet pressure and flow requirements.
Products are 100% functionally tested and helium leak tested before leaving the factory, and are traceable.
| H-PCM Series Products Parameter | |
| GENERAL INFORMATION | |
| Application | Hydrogen low pressure regulator |
| Design | Electronically controlled proportional valve +isolation valve |
| Body material | Aluminum,anodized |
| Fuel type | Hydrogen |
| PERFORMANCE | |
| Nominal inlet pressure | Configurable from 0.5to 3 MPa lg) |
| Regulated flow rate | Configuroble:>15kg/hrhydrogen |@20℃) |
| Outlet pressure | Configuroble from 0.2 to 3barg nominal,electronically controlled |
| Working temperature | -40℃ to 120℃ (-40°F to 248°F) |
| Pressure Relief valve | Mulfiple settings available;to be determined with customer |
| Filter (replaceable) | 40 micronand 10 micron available |
| Optional pressure sensor or port | Customer defined |
| Coll-proportional valve | 12V,PWM controlled,5.7 ohm[@20°C] |
| Coll-isolation valve |
12V:10.6 ohm @20℃+/-5%:24 V:44 ohms @20℃+/-5% AMP Superseal 1.5 series,male,2 way |
| CONNECTIONS | |
| Inlet thread type | 9/16”-18 UNF:other configurations possible |
| Outlet thread type | 9/16”-18 UNF:other configurations possible |
